The new Discovery CNC series includes three sizes, each with prismatic guides, ball screws, and the same powerful, yet easy to use, DSP pendant controller which we utilize on our larger machines. We also provide a full complement of accessories ensuring that you’ll receive a package that’s specifically tailored to your CNC needs.

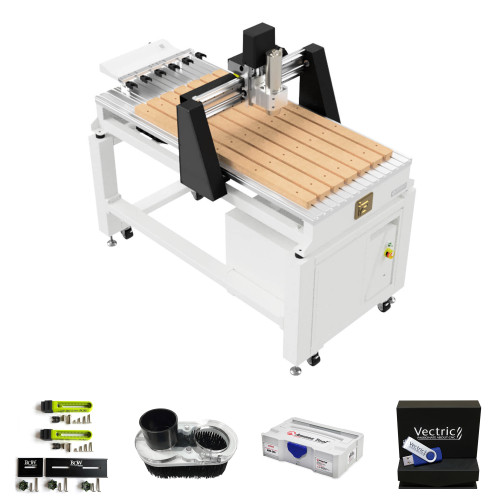

SPECIAL HOBBYIST & MAKER BUNDLE INCLUDES:
- DISCOVERY 8 (24" x 48") CNC Machine
- 220 Dust Shoe (DS220)
- Lateral Clamp Kit (CNCLCK)
- Amana Spektra 9 Piece Bit Set - All 1/4" Shank (CNC9PBS)
- VCarve Pro (VCP)
- Lifetime Technical Support on Hardware and Software
- Shipping in Canada *Some Exceptions Apply*
The Discovery Series offers a powerful and reliable CNC solution for creators, educators, and small businesses looking to take their digital fabrication to the next level. Our Discovery lineup includes five distinct models: Discovery 1 (12" x 12"), Discovery 2 (24" x 12"), Discovery 8 (24" x 48"), and Discovery 16 (48" x 48").
Every model in the Discovery Series features precision ball screws, linear guideways, and an industrial-grade eCNC controller with a 7" touchscreen for easy, hands-on operation. The Discovery 1 and 2 are equipped with a 1HP spindle, while the Discovery 8 and 16 feature robust 3HP spindles, providing ample power for demanding woodworking and light production tasks. Whether you are building signs, furniture, prototypes, or passion projects, the Discovery Series is your gateway into professional-grade CNC performance – built simply.
Includes:
- Tool Touch-Off Puck
- Wrench Set
- ER20 Collet Set (CSER20)
- Hold Down Clamps - Set of 2 (CNCHDC2)
- Weight: 300.00 LBS

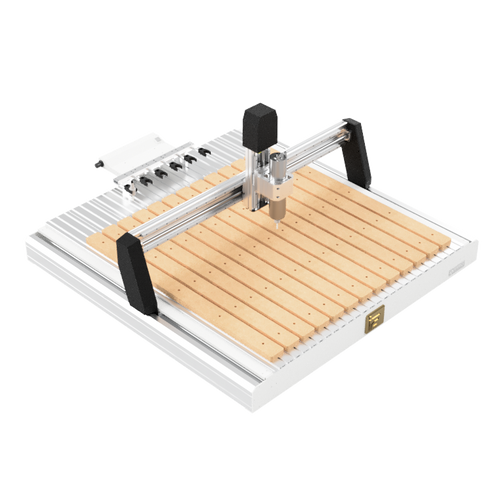

| Specification | Discovery 8 | Discovery 16 | Discovery 16ATC |
|---|---|---|---|
| X Axis Travel | 24" (610mm) | 48" (1220mm) | 48" (1220mm) |
| Y Axis Travel | 48" (1220mm) | 48" (1220mm) | 48" (1220mm) |
| Z Axis Travel | 7.87" (200mm) | 7.87" (200mm) | 7.87" (200mm) |
| Table Work Area | 24" x 48" | 48" x 48" | 48" x 48" |
| Spindle Type | 3HP Air Cooled | 3HP Water Cooled | 3HP Water Cooled |
| Spindle Configuration | ER20 (1/4" & 1/2") | ER20 (1/4" & 1/2") | ISO20 ATC (1/4" & 1/2") |
| Controller | eCNC | eCNC | iCNC |
| On-Board Memory | No | No | Yes |
| Rapid Feed Rate | 150ipm (3.81m/min) | 150ipm (3.81m/min) | 150ipm (3.81m/min) |
| Tool Touch-Off | Included | Included | Included |
| Onboard Cooling | Included | Included | Included |
| Machine Base | High Rigidity Aluminum Extrusion | High Rigidity Aluminum Extrusion | High Rigidity Aluminum Extrusion |
| Rotary Axis | Yes | Yes | Yes |
| Resolution | +/- .000197" (0.05мм) | +/- .000197" (0.05мм) | +/- .000197" (0.05мм) |
| Precision Linear Guides | X / Y / Z | X / Y / Z | X / Y / Z |
| Precision Ball Screw Transmission | X / Y / Z | X / Y / Z | X / Y / Z |
| Power Requirements | 220V, 50-60Hz, 10A, 1-Phase | 220V, 50-60Hz, 10A, 1-Phase | 220V, 50-60Hz, 10A, 1-Phase |
| Working Table | High Rigidity Aluminum Extrusion | High Rigidity Aluminum Extrusion | High Rigidity Aluminum Extrusion |
| Gantry Bridge | High Rigidity Aluminum Extrusion | High Rigidity Aluminum Extrusion | High Rigidity Aluminum Extrusion |
| Gantry Supports | Steel Plate | Steel Plate | Steel Plate |
| Max Gantry Clearance | 7.2" (182mm) | 7.2" (182mm) | 7.2" (182mm) |
| Clearance Above Spoil Board | 6.2" (157mm) | 6.2" (157mm) | 6.2" (157mm) |
| Machine Dimensions | 63.13" L x 36.22" W x 33.64" H | 63.13" L x 61.02" W x 33.64" H | 63.13" L x 61.02" W x 33.64" H |
| Shipping Dimensions | 52" L x 39" W x 33" H | 65" L x 39" W x 33" H | |
| Machine Weight | 317.7 lbs | 349.9 lbs | |
| Shipping Weight | 371.9 lbs | 412.9 lbs |
