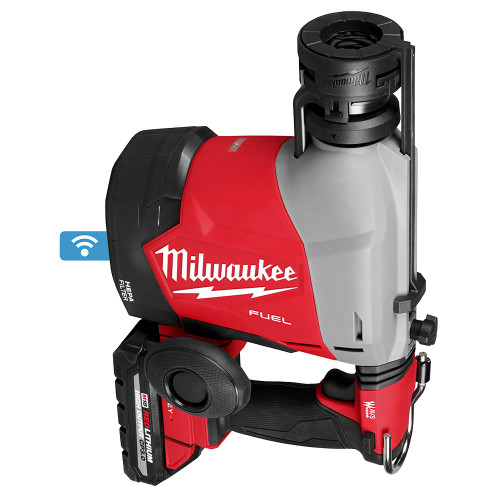

The MILWAUKEE M18 FUEL Overhead Rotary Hammer w/ Integrated Dust Extraction is a new-to-world solution optimized for ceiling drilling. This 2-in-1 design delivers improved ergonomics for overhead work compared to traditional rotary hammer and dust extractor attachments, while maintaining Table 1 compliance. This SDS Plus rotary hammer provides several new features that keep operators productive and comfortable for repetitive drilling overhead. The built-in dust extractor creates a compact, lightweight tool with optimized balance for less fatigue. The newly designed side handle, now located near the rear handle, allows the operator to maintain better body posture throughout the application. The handle can be inserted on the left or right of the tool and can be collapsed for easy storage. AUTOSTOP Kickback control offers enhanced safety for the operator by preventing over-rotation in a bind-up. With ONE-KEY, users can choose between default and low sensitivity settings for AUTOSTOP feature, in addition to tool tracking and management. The M18 FUEL Overhead Rotary Hammer w/ Integrated Dust Extraction provides simplified dust compliance and superior ergonomics, while still delivering best-in-class performance. The POWERSTATE Brushless motor provides fastest drilling for small ceiling anchors and enough power to complete up to 5/8" holes in concrete.
- Lightest Weight, Less Fatigue
- 2-in-1 Design, Simplified Dust Compliance
- Fastest Drilling for Small Ceiling Anchors
- > 100 holes per charge on the M18 REDLITHIUM HIGH OUTPUT CP3.0 battery
- Ergonomic Side Handle
- Integrated Dust Extractor
- AUTOSTOP kickback control prevents severe kickback
- ONE-KEY Compatible: Ability to track and manage tools
- Depth Stop
- Anti-Vibration System (AVS): Minimizes vibration for maximum comfort
- AUTOPULSE Filter Cleaning Mechanism: Automatically cleans the dust extractor filter after use
- Dust Extractor with HEPA Filters
- Hanging Hook
- Replaceable Dust Tubes
- 5 Year Warranty
- (1)M18 FUEL Overhead Rotary Hammer(3311-20)
- (2)M18 High Output CP3.0ah Batteries(48-11-1835)
- (1)M18 and M12 Rapid Charger(48-59-1808)
- (3)Replacement Dust Tubes(49-90-0900)
- (1)Hard Case
- Weight: 18.96 LBS
- Width: 6.85 (in)
- Height: 15.51 (in)
- Depth: 22.17 (in)
Dust Extractor IncludedYes
FUELYes
ONE-KEY EnabledYes
Brushless MotorYes
Side HandleYes
Variable SpeedYes
Anti Vibration System (AVS)Yes
AUTO STOP Yes
Reverse FunctionYes
Integrated LightYes
Case IncludedYes
LED Charge IndicatorYes
Includes ChargerYes
Switch TypeTrigger
Handle TypeSide Handle
Chuck TypeSDS Plus
Drill TypeRotary Hammer Drilll
Color FinishRed; Blacks
Motor TypePOWERSTATE Brushless
Chuck Size (in)*Not Applicable
Chuck DesignNot Applicable
Chisel RotationNo
VACLINK Wireless Dust ControlNo
Lock-on SwitchNo
Core Bit CapacityNo
Bump-Off SwitchNo
ConditionNew
Impacts Per Minute Range (IPM)N/A
Battery SystemM18
Battery CompositionLithium-Ion (Li-ion)
Battery TypeLithium Ion
Type of ModesHammer Drill
MaterialGlass Filled Nylon
Power Tool BrandingFUEL
Badge BrandingFUEL
Handle TypeErgonomic
Powered Tool Power SourceElectric - Cordless
Product TypeCordless Rotary Hammer
Power SourceCordless
Corded CordlessCordless
Product Storage IncludedCase
Depth ControlAdjustable
Weight Battery Installed (lb)7.1
Rotary Hammer Size (in)5/8
Weight Excluding Battery (lb)5.8
Blows Per Minute (bpm)4740
Battery Quantity Included2
Number of Batteries Included2
Battery Size18 Volt
Battery Voltage18
Battery Charger Input Voltage18
Maximum RPM1310
Impact Energy (ft-lbs)1.7
Number of Batteries Required1
Maximum Concrete Bit Size (in)0.625
Videos Hide Videos Show Videos
- Weight: 18.96 LBS
- Width: 6.85 (in)
- Height: 15.51 (in)
- Depth: 22.17 (in)
