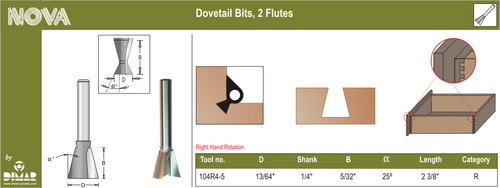

Dimar's Carbide Tipped Dovetail bits are commonly used to join for example the sides of a drawer to the front of the panels of a box. A series of pinscut to extend from the end of one board interlock with a series oftailscut into the end of another board. The pins and tails have a trapezoidal shape. Once glued, a wooden dovetail joint requires no mechanical fasteners.Two Flutes are ideal when fine finishing is a priority.Cuts most softwood and hardwood.Works on CNC, Hand-Held, Tabel router machines.
- Weight: 1.00 LBS
Diameter (D)7/32"
D15/64"
D2-
D3-
Shank (d)1/4"
Shank Length-
Cutting Length (B)5/32"
B2-
Overall Length (L)2 9/16"
Flutes2
Radius (R) -
R2-
Depth-
Angle (A)38 Degree
A2-
Bore-
Videos Hide Videos Show Videos
- Weight: 1.00 LBS
- Shank: 1/4 in
- Profile: Tee & Bumper Bits
