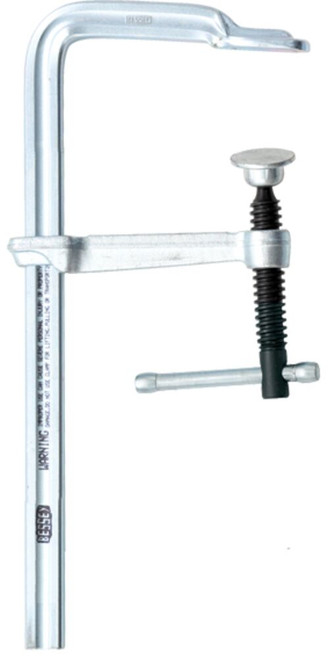

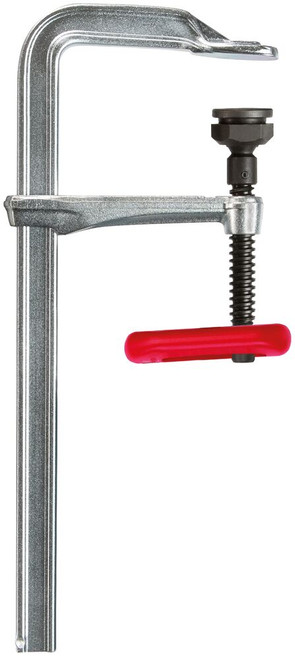

When you need to clamp over small obstructions, BESSEY "J" clamps can eliminate the need for blocking. It is available in three sizes. The smallest of the three has a standard pad, while the 2400 and 4800 series versions are equipped with a heavy duty MorPad. Designed & manufactured for years of dependable service, these clamps are made in BESSEY's own German production facilities and, from steel that comes from BESSEY's own European steel mills. BESSEY created the first sliding arm clamp and to this day remains the category leader in both quality and design. BESSEY. Simply better.
- Special "J" shaped frame is designed to "Step Over" obstructions
- Clamp rail and fixed jaw are created from a single piece of BESSEY cold drawn steel
- After bending and forming of the fixed jaw the rails are heat treated for maximum strength
- Specially hardened spindle resists weld spatter
- Sliding T-bar handle
- Drop forged, electro-galvanized steel sliding arm
- Replacement arms, spindles and snap on pressure pads are available.
- Weight: 3.20 LBS
- Width: 6.71 (in)
- Height: 1.50 (in)
- Depth: 15.76 (in)
Jaw Width (in)1.25
Nominal Throat Depth (in)4.75
Nominal Capacity (in)10
Clamping Force (lbs)880
Rail Dimensions (in)55/64
Rail Dimensions (in)13/32
Spindle Dia. (in)0.625
Spindle (pitch)Tr16 - 4
Handle Length (in)3.94
Color / FinishSteel
