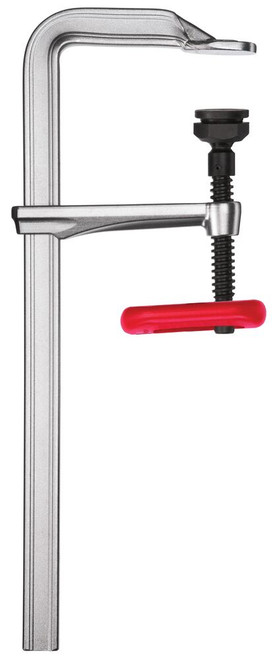

Premium all-steel bar clamps from BESSEY deliver uncompromising quality, patented features, durability and real-world productivity make it a must-have tool in today's modern workshop. With clamping forces ranging from 700 lbs up to 8500 lbs virtually all possible applications are covered. A patented rail profile offers greater stability, enhanced clamping force and 20% more clamping force per spindle turn for quicker set-up times. U-shaped sliding arm transfers clamping force evenly across the surface.
- Unique BESSEY MorPad tilts to 35 Deg.
- Sliding arm is made of tempered, drop-forged steel
- Clamp rail and fixed jaw are created from a single piece of BESSEY cold drawn steel
- After bending and forming of the fixed jaw the rails are heat treated for maximum strength
- Patented rail profile offers greater stability
- 20% more clamping force per turn of the screw gets you maximum clamping faster
- Does the work of C Clamps ... but does it 9x faster
- Comes with a BESSEY Grip Handle - a durable comfortable accessory that fits snuggly over the standard steel sliding pin handle
- Replacement arms, spindles and MorPads are available
- Weight: 6.45 LBS
- Width: 8.80 (in)
- Height: 1.58 (in)
- Depth: 15.43 (in)
Jaw Width (in)1.5
Nominal Throat Depth (in)5.5
Nominal Capacity (in)8
Clamping Force (lbs)2800
Rail Dimensions (in)1-11/32
Rail Dimensions (in)33/64
Spindle Dia. (in)0.78
Spindle (pitch)Tr20 - 5
Maximum Torque Input (lb-ft)29.5
Handle Length (in)4.75
Color / FinishBright Zinc Plated
