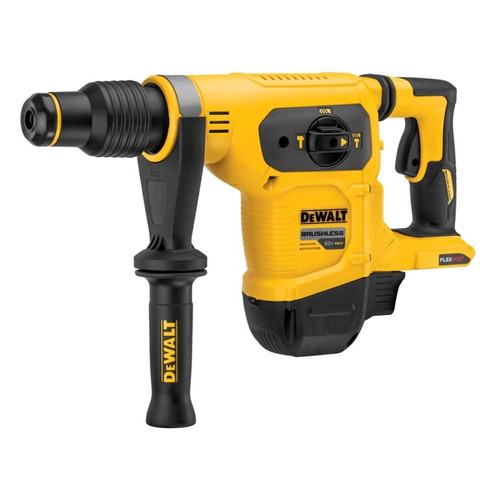

Dewalt DCH481B 60V MAX 1-9/16 in. Brushless Cordless SDS MAX Combination Rotary Hammer (Tool Only)
The 60V MAX 1-9/16 in. Brushless SDS MAX Combination Hammer is a light weight, high-peroformance hammer that is powered by a brushless motor and a durable German engineered mechanism. It delivers 6.1 Joules of impact energy for fast drilling and chipping, even in the hardest concrete. The constant speed electronics allow the tool to maintain speed under load. The light weight design makes it ideally suited for horizontal drilling for #3 - #6 rebar dowel applications, dry coring up to 3 in., and chipping in any mid to upper wall and ceiling. This hammer is part of the PERFORM & PROTECT product line, integrated with the Anti-Rotation E-CLUTCH System and the SHOCKS Active Vibration Control System. E-CLUTCH shuts down the tool in bind up situations. SHOCKS reduces vibration felt by the user at the handles, compared to rotary hammers without this feature. This tool comes Tag Ready so users and companies can attach the DEWALT Tag and track its location virtually anywhere via the DEWALT Tool Connect app.
The 60V MAX 1-9/16 in. Brushless SDS MAX Combination Hammer is a light weight, high-peroformance hammer that is powered by a brushless motor and a durable German engineered mechanism. It delivers 6.1 Joules of impact energy for fast drilling and chipping, even in the hardest concrete. The constant speed electronics allow the tool to maintain speed under load. The light weight design makes it ideally suited for horizontal drilling for #3 - #6 rebar dowel applications, dry coring up to 3 in., and chipping in any mid to upper wall and ceiling. This hammer is part of the PERFORM & PROTECT product line, integrated with the Anti-Rotation E-CLUTCH System and the SHOCKS Active Vibration Control System. E-CLUTCH shuts down the tool in bind up situations. SHOCKS reduces vibration felt by the user at the handles, compared to rotary hammers without this feature. This tool comes Tag Ready so users and companies can attach the DEWALT Tag and track its location virtually anywhere via the DEWALT Tool Connect app.
FEATURES
- 6.1 Joules of impact energy for fast drilling and chipping, even in the hardest concrete.
- Anti-Rotation E-CLUTCH System shuts down the tool in bind up situations.
- Constant speed electronics allows the tool to maintain speed under load.
- SHOCKS Active Vibration Control System reduces vibration felt by the user at the handles, compared to rotary hammers without this feature.
- The light weight design makes it ideally suited for horizontal drilling for #3 - #6 rebar dowel applications and dry coring up to 3 in.
- Brushless motor and German-engineered mechanism.
- Tag Ready so users and companies can attach the DEWALT Tag and track its location virtually anywhere via the DEWALT Tool Connect app.
- Ideally suited for chipping in any lower wall and floor, ground rod driving, and bushing.
APPLICATIONS
- Drilling for #4 - #8 rebar and 5/8 in. - 1 in. threaded rod
- Chipping in any mid to upper wall and ceiling application.
- Dry coring
Includes:
- DCH481 60V MAX Combination Rotary Hammer
- 360 Side Handle
- Weight: 15.00 LBS
Optimal Concrete Drilling1/2 - 1-1/8"
Vibration Measurement9.4m/s²
Blows/Min3\,150bpm
No Load Speed540rpm
ChippingYes
Vibration ControlYes - SHOCKS
Tool Weight11.91lbs
Impact Energy6.1Joules
Tool Length19.75"
E-ClutchYes
ClutchE-Clutch and Integral Mechanical Clutch
Chargers/BatteriesSold Seperatley
Max. Diameter Core3"
Power Tool TypeCordless
Chuck TypeSDS Max
System60V MAX
Chisel RotationTRUE
Videos Hide Videos Show Videos
- Weight: 15.00 LBS
- Voltage: 60V
